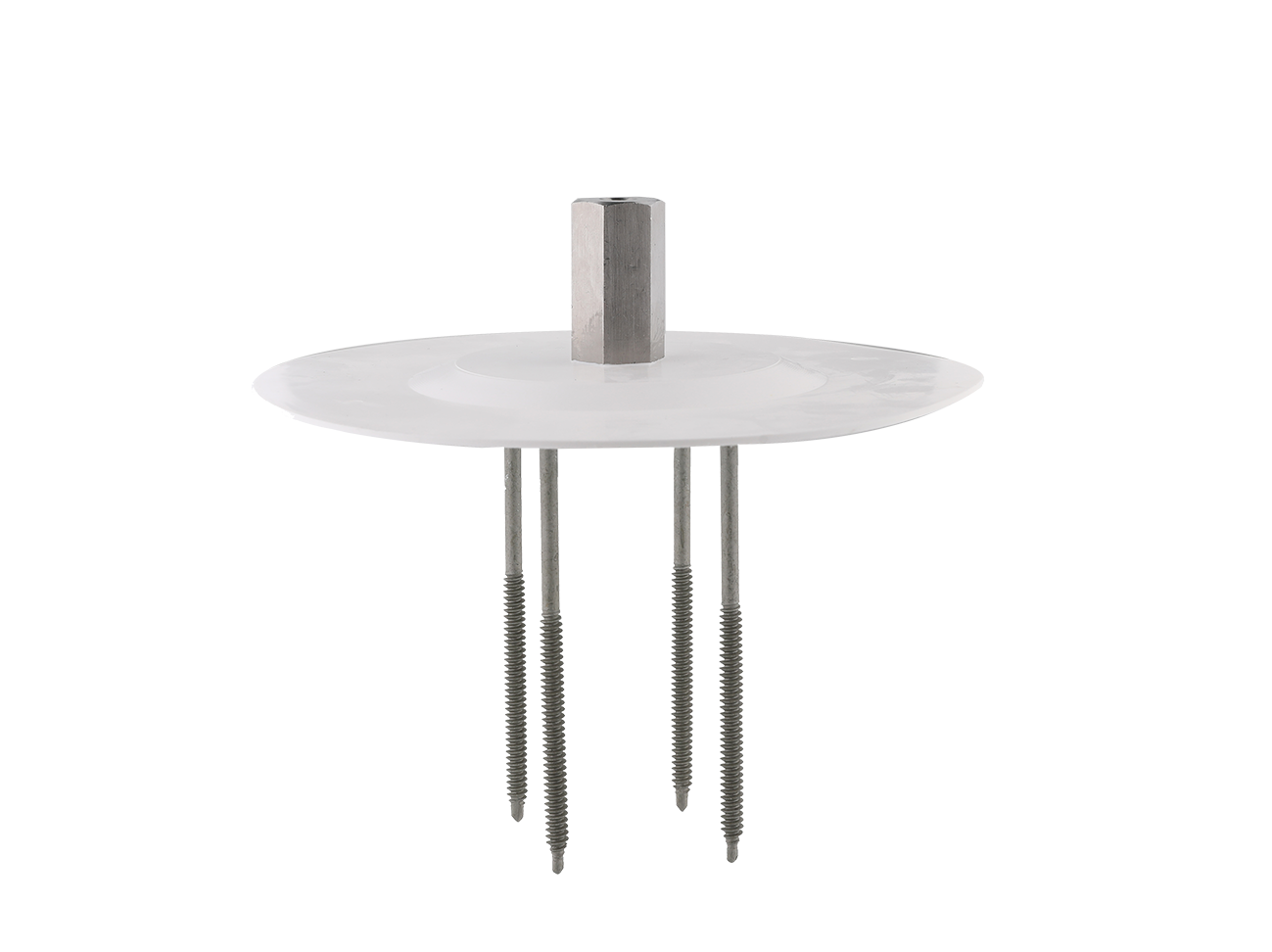

304 stainless steel hexagonal prisms

Size

Base Ø200mm, Height 50mm

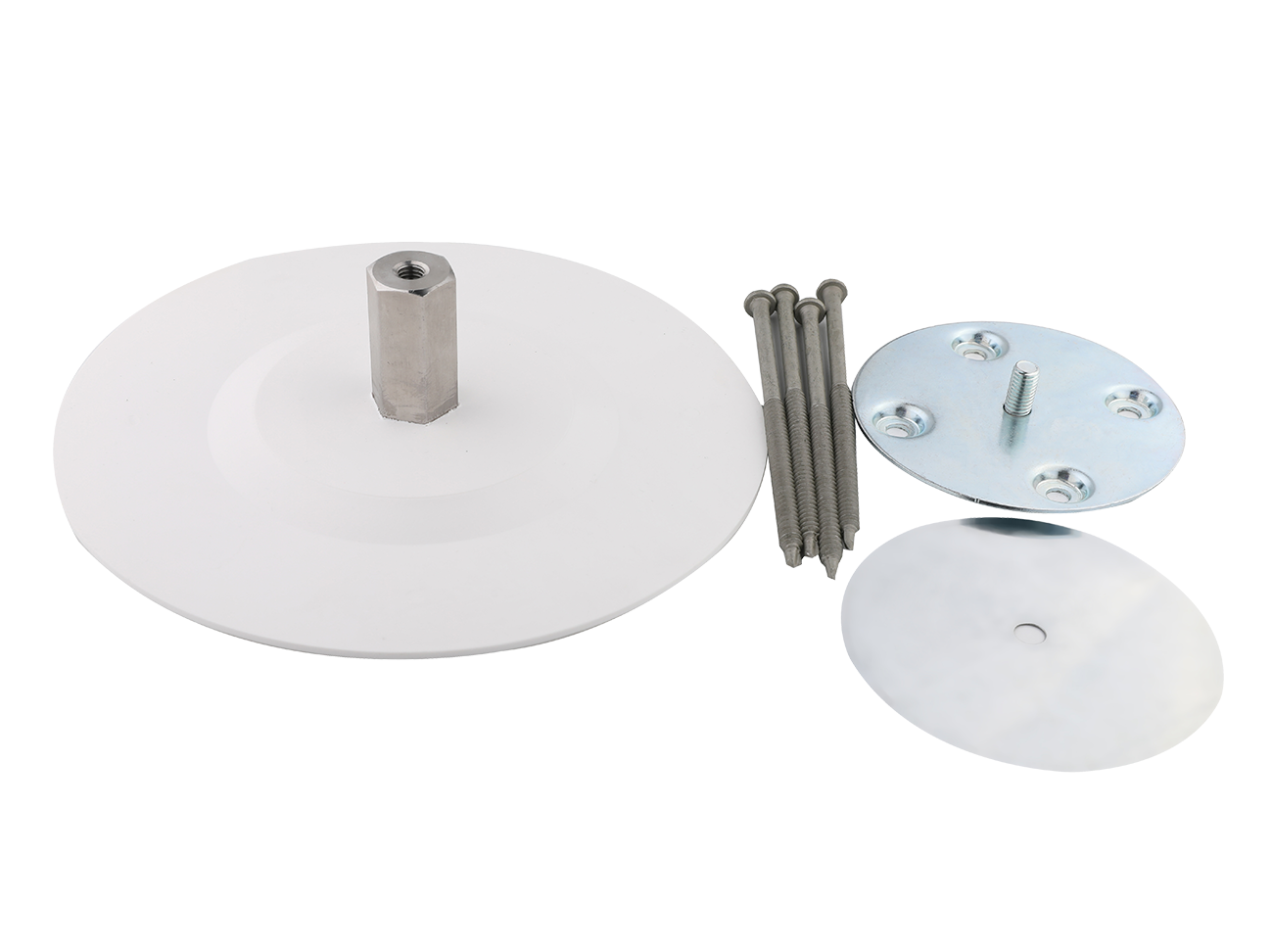

Component

Fixing Disc, Protection plate, Four 6.3mm Torx Head Self-Drilling Screws

Design load

1500N

Tensile strength

>2000N

Application

Used for installing fixed photovoltaic rails in a single-layer flexible roofing system

Advantage

By using patented technology, the stainless steel bearing is integrally
molded with PVC/TPO through injection molding.
Enable the photovoltaic support to achieve a seamless connection
with the large-area waterproof layer through hot air welding.
The welding strength between the support and the membrane is much
higher than the requirements specified in the design standards.
