aluminum alloy support

Size

Base 160*80mm, Block Height 25mm

Design load

1500N

Tensile strength

>1500N

Application

Installing photovoltaic solar panels on 840 TMP roofs

Advantage

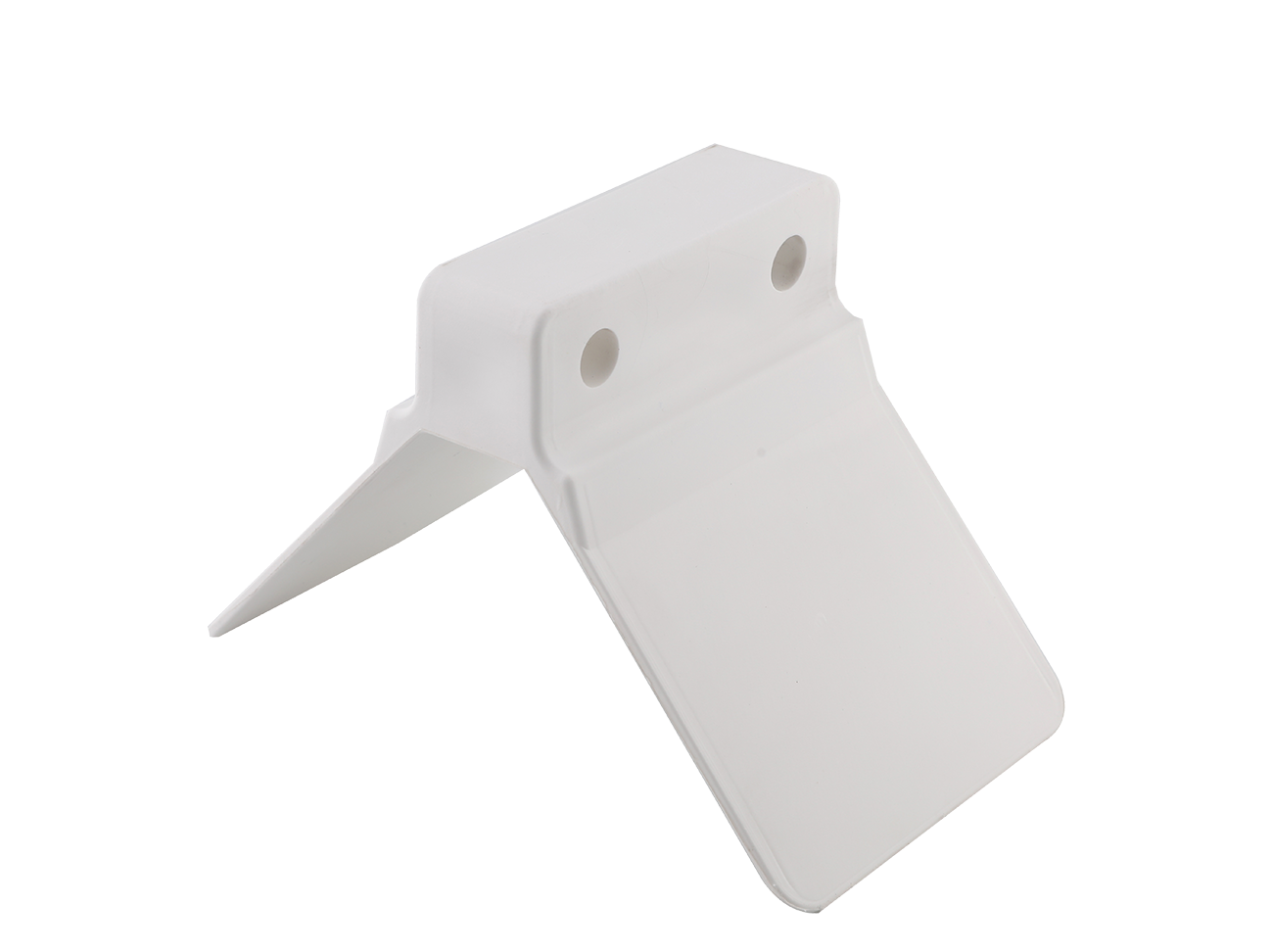

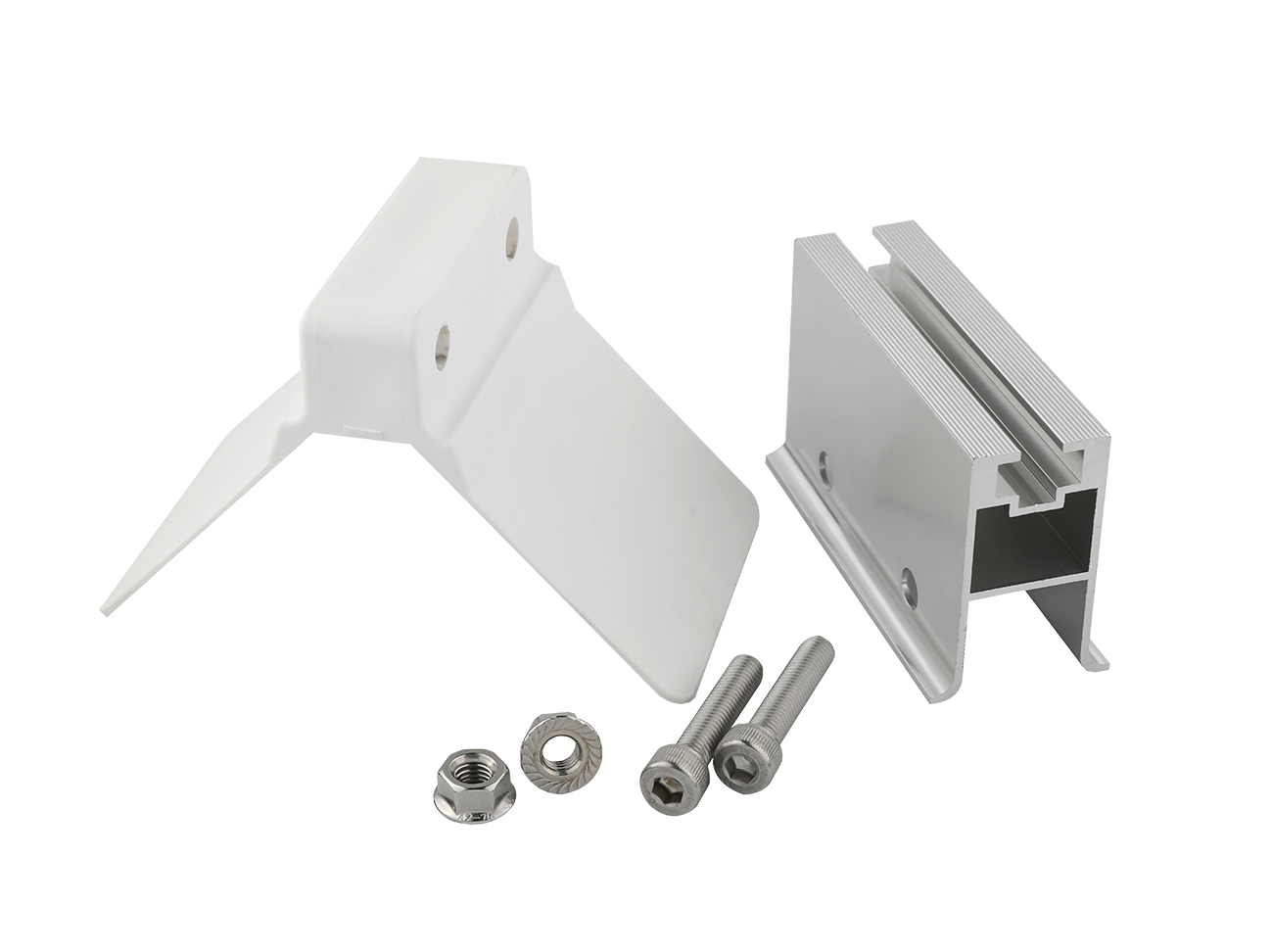

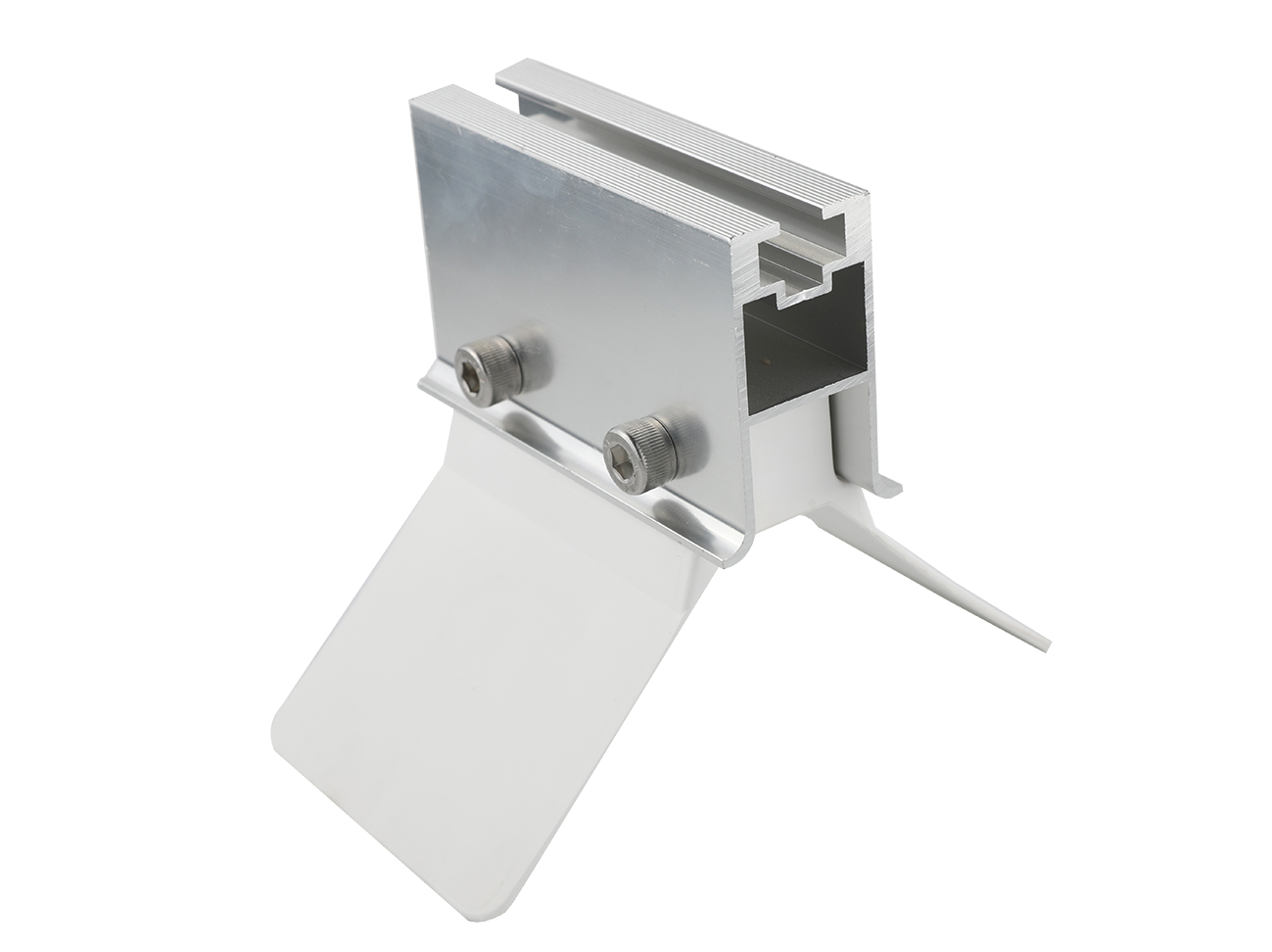

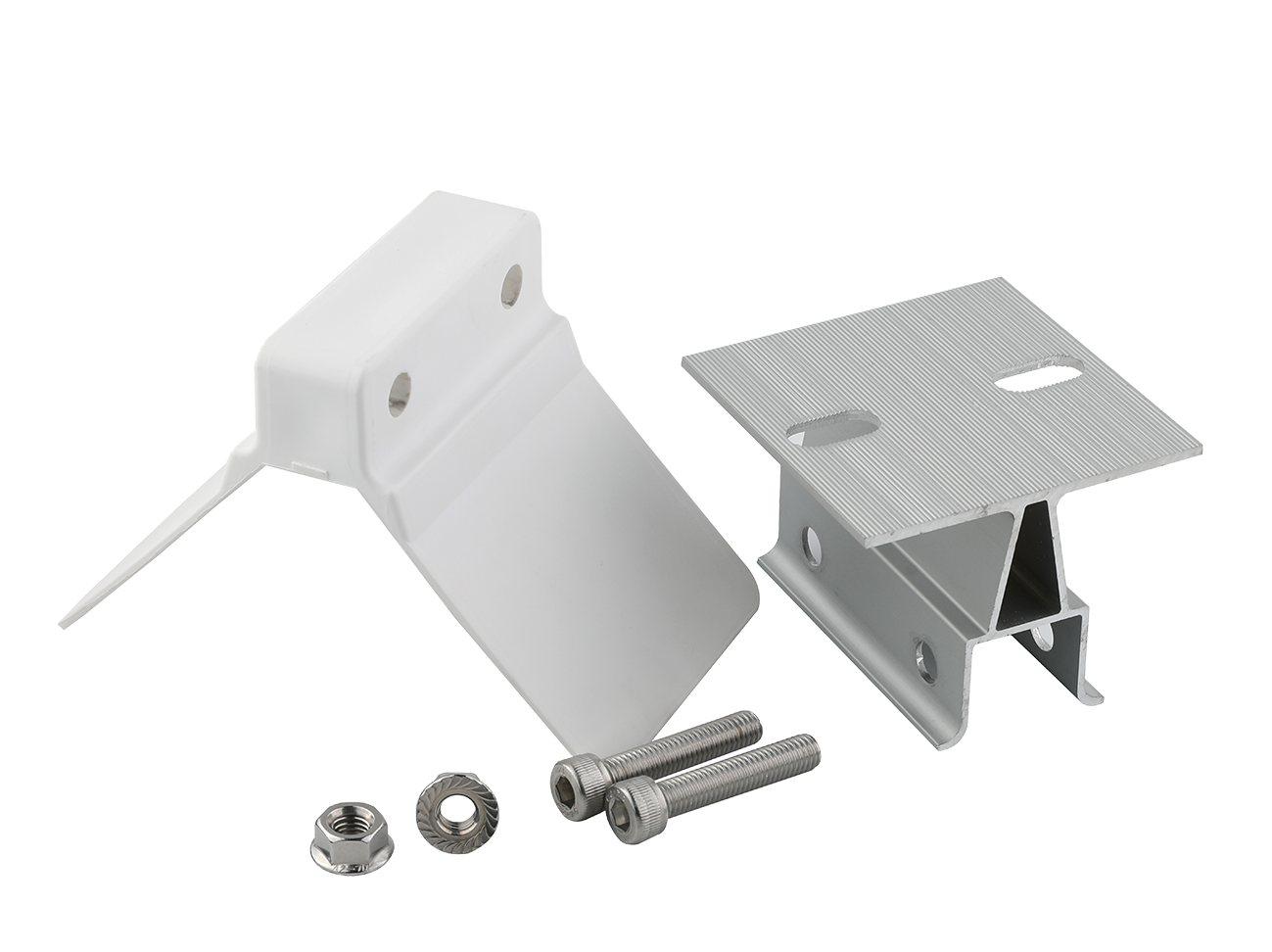

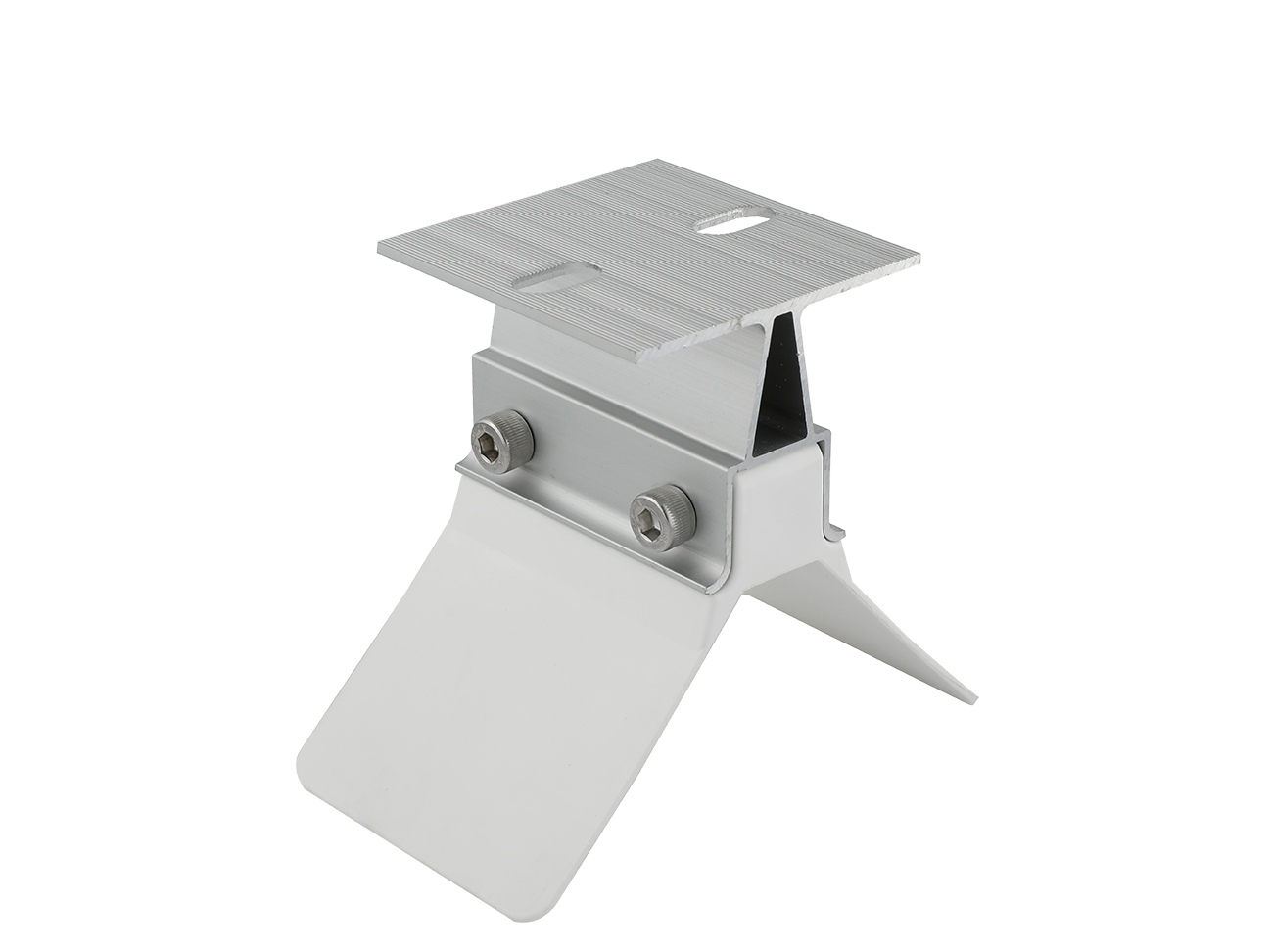

It is composed of two parts: an injection-molded base made of high
weather-resistant PVC or TPO material, and an aluminum alloy profile.
Through the hot air welding process, the original roof waterproofing
sheet is welded and integrated with the new roof, achieving a seamless
and integrated combination of rigidity and flexibility.
It is perfectly fused and welded onto the peaks of the fusion tiles,
facilitating the subsequent installation process.
